件號 - | 軟管尺寸 | ID | OD | WP | |||||
dash | inch | DN | mm | inch | mm | inch | bar | psi | |
A6S-12-1400 | -8 | 1/2 | 12 | 12.8 | 0.504 | 24.3 | 0.957 | 1400 | 20300 |
A6S-20-1200 | -12 | 3/4 | 20 | 18.8 | 0.74 | 32.6 | 1.283 | 1200 | 17400 |
描述 | 錐度 | WP | 螺紋F | 適用軟管 |
psi | ||||
1/4"F-BSPP A 1/8" | 24-60 | 22000 | 1/4"-19GAS | 2S-3-1040 |
1/4"F-BSPP B/A 5/32" | 24-60 | 22000 | 1/4"-19GAS | 2S-4-1200,4S-4-1040 |
1/4"F-BSPP B/A 5/32" | 24-60 | 22000 | 1/4"-19GAS | 2SH-3-1040 |
1/4"F-BSPP C 5/32" | 24-60 | 31900 | 1/4"-19GAS | 4SH-4-2200 |
1/4"F-BSPP A 3/16" | 24-60 | 22000 | 1/4"-19GAS | 2S-5-1040 |
1/4"F-BSPP A 3/16" | 24-60 | 22000 | 1/4"-19GAS | 2SH-4-1200 |
1/4"F-BSPP C 3/16" | 24-60 | 26100 | 1/4"-19GAS | 4SH-5-1800 |
1/4"F-BSPP F/E 3/16" | 24-60 | 40600 | 1/4"-19GAS | B6S-5-2500,D6S-5-2800 |
1/4"F-BSPP I/H 3/16" | 24-60 | 40600 | 1/4"-19GAS | E6SH-5-3200,B8S-5-4000 |
1/4"F-BSPP B/A 1/4" | 24-60 | 22000 | 1/4"-19GAS | 2S-6-1040,4S-6-1380 |
1/4"F-BSPP C 1/4" | 24-60 | 24000 | 1/4"-19GAS | 4SH-6-1640 |
3/8"F-BSPP A 5/16" | 24-60 | 22000 | 3/8"-19GAS | 2S-8-1040 |
3/8"F-BSPP C/B 5/16" | 24-60 | 22000 | 3/8"-19GAS | 4S-8-1380,4SH-8-1500 |
1/2"F-BSPP B/A 3/8" | 24-60 | 22000 | 1/2"-14GAS | 2S-10-690,4S-10-1100 |
1/2"F-BSPP E/C 3/8" | 24-60 | 28000 | 1/2"-14GAS | 4SH-10-1400,B6S-10-2070 |
1/2"F-BSPP A 1/2" | 24-60 | 18000 | 1/2"-14GAS | 2S-12-690 |
1/2"F-BSPP G/D/C/B 1/2" | 24-60 | 22000 | 1/2"-14GAS | 4S-12-1040,4SH-12-1300,4SHH-12-1040,A6S-12-1400 |
1"F-BSPP G/C/A 3/4" | 60 | 18000 | 1"-11GAS | 4S-20-760,4SH-20-1040,A6S-20-1200 |
1+1/4"F-BSPP C1 | 60 | 15000 | 1+1/4"-11GAS | 4SH-25-1040 |
描述 | WP | 螺紋F | 適用軟管 |
psi | |||
9/16 F-JIC B/A 1/4 | 22000 | 9/16-18 UNF | 2S-6-1040,4S-6-1380 |
9/16 F-JICC 1/4 | 24000 | 9/16-18 UNF | 4SH-6-1640 |
9/16 F-JIC A 5/16 | 22000 | 9/16-18 UNF | 2S-8-1040 |
3/4 F-JIC C/B 5/16 | 22000 | 3/4-16 UNF | 4S-8-1380,4SH-8-1500 |
3/4 F-JIC B/A 3/8 | 22000 | 3/4-16 UNF | 2S-10-690,4S-10-1100 |
3/4 F-JICC 3/8 | 22000 | 3/4-16 UNF | 4SH-10-1400 |
7/8 F-JIC G/D/C/B 1/2 | 22000 | 7/8-14 UNF | 4S-12-1040,4SH-12-1300,4SH-12-1040,A6S-12-1400 |
1+5/16 F-JIC G/C/A 3/4 | 24000 | 1+5/16-12 UN | 4S-20-760,4SH-20-1040,A6S-20-1200 |
1+5/16 F-JICCI | 15000 | |-t-5/16-12 UN | 4SH-25-1040 |
描述 | WP | 螺紋F | 適用軟管 |
psi | |||
9/16 F-TYPE MB/A 5/32 | 30000 | 9/16-18 UNF | 2S-4-1200,4S-4-1040 |
9/16 F-TYPE ME/C 5/32 | 58000 | 9/16-18 UNF | 4SH-4-2200,B6S-4-2800 |
9/16 F-TYPE MA 3/16 | 30000 | 9/16-18 UNF | 2S-5-1040 |
9/16 F-TYPE MC 3/16 | 30000 | 9/16-18 UNF | 4SH-5-1800 |
9/16 F-TYPE MF/E 3/16 | 45000 | 9/16-18 UNF | B6S-5-2500,D6S-5-2800 |
9/16 F-TYPE MI/H 3/16 | 58000 | 9/16-18 UNF | E6SH-5-3200,B8S-5-4000 |
9/16 F-TYPE MB/A 1/4 | 24000 | 9/16-18 UNF | 2S-6-1040,4S-6-1380 |
9/16 F-TYPE MC 1/4 | 30000 | 9/16-18 UNF | 4SH-6-1640 |
9/16 F-TYPE MF 1/445000 | 45000 | 9/16-18 UNF | D6S-6-2800 |
3/4 F-TYPE MA 5/16 SS | 22000 | 3/4-16 UNF | 2S-8-1040 |
3/4 F-TYPE MC/B 5/16 | 22000 | 3/4-16 UNF | 4S-8-1380,4SH-8-1500 |
3/4 F-TYPE MF/E 5/16 | 40000 | 3/4-16 UNF | B6S-8-2100,D6S-8-2500,C6S-8-2500 |
7/8 F-TYPE MF/E 5/16 | 40000 | 7/8-14 UNF | B6S-8-2100,D6S-8-2500,C6S-8-2500 |
3/4 F-TYPE MI/H 5/16 | 46400 | 3/4-16 UNF | E6SH-8-2800,B8S-8-3800 |
7/8 F-TYPE MI/H 5/16 | 46400 | 7/8-14 UNF | E6SH-8-2800,B8S-8-3800 |
1+1/8 F-TYPE MI/H 5/16 | 46400 | 1+1/8-12 UNF | E6SH-8-2800,B8S-8-3800 |
3/4 F-TYPE MB/A 3/8 SS | 22000 | 3/4-16 UNF | 2S-10-690,4S-10-1100 |
3/4 F-TYPE MC 3/8 | 22000 | 3/4-16 UNF | 4SH-10-1400 |
1 F-TYPE MA 1/2 | 18000 | 1-12 UNF | 2S-12-690 |
1 F-TYPE MF/E 1/2 | 30000 | 1-12 UNF | B6S-12-1800,D6S-12-2070 |
1 F-TYPE EMG/D/C/B 1/2 | 22000 | 1-12 UNF | 4S-20-760,4SH-12-1300, 4SHH-12-1040,A6S-12-1400 |
1 F-TYPE MI/H 1/2 | 43000 | 1-12 UNF | E6SH-12-2500,B8S-12-3010 |
1+5/16 F-TYPE ME/G/C/B/A 3/4 | 24000 | 1+5/16-12 UN | 4S-20-760,4SH-20-1040, A6S-20-1200,B6S-20-1400 |
1+5/16 F-TYPE MCI | 22000 | 1+5/16-12 UN | 4SH-25-1040 |
描述 | WP | 螺紋F | 適用軟管 |
psi | |||
3/8M-MP C 1/4 | 22500 | 3/8-24 UNFLH | 4SH-6-1640 |
9/16M-MP C/B 5/16 | 22500 | 9/16-18 UNFLH | 4S-8-1380,4SH-8-1500 |
3/4M-MP C/B 5/16 | 22500 | 3/4-16 UNFLH | 4S-8-1380,4SH-8-1500 |
3/4M-MP F/E 5/16 | 22500 | 3/4-16 UNFLH | B6S-8-2100,D6S-8-2500,C6S-8-2500 |
3/4M-MP I/H 5/16 | 22500 | 3/4-16 UNFLH | E6SH-8-2800 |
9/16M-MP A 1/2 | 22500 | 9/16-18 UNFLH | 2S-12-690 |
9/16M-MP F/E 1/2 | 22500 | 9/16-18 UNFLH | B6S-12-1800,D6S-12-2070 |
3/4M-MP F/E 1/2 | 22500 | 3/4-16 UNFLH | B6S-12-1800,D6S-12-2070 |
9/16M-MP G/D/C/B 1/2 | 22500 | 9/16-18 UNFLH | 4S-12-1040,4SH-12-1300, 4SHH-12-1040,A6S-12-1400 |
3/4M-MP G/D/C/B 1/2 | 22500 | 3/4-16 UNFLH | 4S-12-1040,4SH-12-1300, 4SHH-12-1040,A6S-12-1400 |
1M-MP E/G/C/B/A 3/4 | 22500 | 1-14 UNSLH | 4S-20-760,4SH-20-1040, A6S-20-1200,B6S-20-1400 |
1M-MP E 1 | 20000 | 1-14 UNSLH | B6S-25-1200 |
描述 | WP | 螺紋F | 適用軟管 |
psi | |||
24x1.5F-DKOS B/A 5/32" | 30000 | M24x1.5 | 2S-4-1200,4S-4-1040 |
24x1.5F-DKOS B/A 5/32" | 30000 | M24x1.5 | 2SH-3-1040 |
24x1.5F-DKOS A 3/16" | 30000 | M24x1.5 | 2S-5-1040 |
24x1.5F-DKOS A 3/16" | 30000 | M24x1.5 | 2SH-4-1200 |
20x1.5F-DKOS C 3/16" | 30000 | M20x1.5 | 4SH-5-1800 |
18x1.5F-DKOS B/A 1/4" | 24000 | M18x1.5 | 2S-6-1040,4S-6-1380 |
22x1.5F-DKOS B/A 1/4" | 24000 | M20x1.5 | 2S-6-1040,4S-6-1380 |
24x1.5F-DKOS B/A 1/4" | 24000 | M22x1.5 | 2S-6-1040,4S-6-1380 |
18x1.5F-DKOS C 1/4" | 30000 | M24x1.5 | 4SH-6-1640 |
20x1.5F-DKOS A 5/16" | 30000 | M18x1.5 | 2S-8-1040 |
24x1.5F-DKOS A 5/16" | 30000 | M20x1.5 | 2S-8-1040 |
20x1.5F-DKOS B 5/16B | 40000 | M24x1.5 | 4S-8-1380,4SH-8-1500 |
22x1.5F-DKOS C/B 5/16" | 40000 | M20x1.5 | 4S-8-1380,4SH-8-1500 |
24x1.5F-DKOS C/B 5/16" | 40000 | M22x1.5 | 4S-8-1380,4SH-8-1500 |
24x1.5F-DKOS F/E 5/16" | 40000 | M24x1.5 | B6S-8-2100,D6S-8-2500 |
24x1.5F-DKOS I/H 5/16" | 46400 | M24x1.5 | E6SH-8-2800,B8S-8-3800 |
22x1.5F-DKOS B/A 3/8" | 28000 | M22x1.5 | 2S-10-690,4S-10-1100 |
24x1.5F-DKOS B/A 3/8" | 28000 | M24x1.5 | 2S-10-690,4S-10-1100 |
22x1.5F-DKOS E/C 3/8" | 30000 | M22x1.5 | 4SH-10-1400,B6S-10-2070 |
24x1.5F-DKOS E/C 3/8" | 30000 | M24x1.5 | 4SH-10-1400,B6S-10-2070 |
22x1.5F-DKOS A 1/2" | 18000 | M22x1.5 | 2S-12-690 |
24x1.5F-DKOS A 1/2" | 18000 | M24x1.5 | 2S-12-690 |
22x1.5F-DKOS G/D/C/B 1/2" | 22000 | M22x1.5 | 4S-12-1040,4SH-12-1300,4SHH-12-1040,A6S-12-1400 |
24x1.5F-DKOS G/D/C/B 1/2" | 22000 | M24x1.5 | 4S-12-1040,4SH-12-1300,4SHH-12-1040,A6S-12-1400 |
24x1.5F-DKOS F/E 1/2" | 30000 | M24x1.5 | B6S-12-1800,D6S-12-2070 |
24x1.5F-DKOS I/H 1/2" | 43000 | M24x1.5 | E6SH-12-2500,B8S-12-3010 |
36x2F-DKOS E/G/C/B/A 3/4" | 24000 | M36x2 | 4S-20-760,4SH-20-1040,A6S-20-1200,B6S-20-1400 |
42x2F-DKOS E/C 1" | 22000 | M42x2 | 4SH-25-1040,B6S-25-1200 |
描述 | WP | 螺紋F | 適用軟管 |
psi | |||
1/16M-NPTA 1/8NOHEX | 22000 | 1/16-27 NPTF | 2S-3-1040 |
1/4M-NPTB/A 1/4NOHEX | 22000 | 1/4-18 NPTF | 2S-6-1040,4S-6-1380 |
描述 | WP | 螺紋F | 適用軟管 |
psi | |||
1/16 M-NPT B/A 5/32 | 22000 | 1/16-27 NPTF | 2S-4-1200,4S-4-1040 |
1/8 M-NPT B/A 5/32 | 22000 | 1/8-27 NPTF | 2S-4-1200.4S-4-1040 |
1/4 M-NPT B/A 5/32 | 22000 | 1/4-18 NPTF | 2S-4-1200,4S-4-1040 |
1/8 M-NPTC 5/32 | 22000 | 1/8-27 NPTF | 4SH-4-2200 |
1/8 M-NPT A 3/16 | 22000 | 1/8-27 NPTF | 2S-5-1040 |
1/4 M-NPT A 3/16 | 22000 | 1/4-18 NPTF | 2S-5-1040 |
1/4 M-NPT C 3/16 | 22000 | 1/4-18 NPTF | 4SH-5-1800 |
1/8 M-NPT B/A 1/4 | 22000 | 1/8-27 NPTF | 2S-6-1040,4S-6-1380 |
1/4 M-NPT B/A 1/4 | 22000 | 1/4-18 NPTF | 2S-6-1040,4S-6-1380 |
3/8 M-NPT B/A 1/4 | 22000 | 3/8-18 NPTF | 2S-6-1040,4S-6-1380 |
1/4 M-NPTC 1/4 | 22000 | 1/4-18 NPTF | 4SH-6-1640 |
1/4 M-NPT A 5/16 | 22000 | 1/4-18 NPTF | 2S-8-1040 |
3/8 M-NPT A 5/16 | 22000 | 3/8-18 NPTF | 2S-8-1040 |
1/4 M-NPT C/B 5/16 | 22000 | 1/4-18 NPTF | 4S-8-1380,4SH-8-1500 |
3/8 M-NPT C/B 5/16 | 22000 | 3/8-18 NPTF | 4S-8-1380,4SH-8-1500 |
3/8 M-NPT B/A 3/8 | 22000 | 3/8-18 NPTF | 2S-10-690,4S-10-1100 |
1/2 M-NPT B/A 3/8 | 22000 | 1/2-14 NPTF | 2S-10-690,4S-10-1100 |
1/2 M-NPT A 1/2 | 18000 | 1/2-14 NPTF | 2S-12-690 |
1/2 M-NPT G/D/C/B 1/2 | 22000 | 1/2-14 NPTF | 45-12-1040,4SH-12-1300,4SHH-12-1040,A6S-12-1400 |
3/4 M-NPT G/C/B 3/4 | 15000 | 3/4-14 NPT | 4S-20-760,24SH-20-1040,A6S-20-1200 |
1 M-NPT G/C/B 3/4 | 15000 | 1-11.5 NPTF | 4S-20-760,24SH-20-1040,A6S-20-1200 |
1 M-NPT C 1 | 15000 | 1-11.5 NPTF | 4SH-25-1040 |
描述 | WP | 螺紋F | 適用軟管 |
Psi | |||
I/16"M-NPTAI/8"I | 22000 | I/16"-27NPTF | 2S-3-1040 |
1/16°M-NPTA5/32"IP | 22000 | I/16"-27NPTF | 2S-4-1200 |
1/16”M-NPTA5/32" I | 22000 | I/16"-27NPTF | 2SH-3-1040 |
1/8"M-NPTA3/16"IP | 22000 | 1/8"-27NPTF | 2S-4-1200 |
1/8"M-NPTA3/16"IP | 22000 | 1/8"-27NPTF | 2SH-3-1040 |
1/8"M-NPTA3/16"IP | 22000 | 1/8"-27NPTF | 2S-5-1040 |
1/8"M-NPTJ3/161P | 22000 | 1/8"-27NPTF | 2SH-4-1200 |
1/4"M-NPTA1/4"IP | 22000 | I/4"-18NPTF | 2S-6-1040 |
5/16"M-NPTA1/4"IP | 22000 | I/4"-18NPTF | 2S-8-1040 |
描述 | WP | 螺紋F | 適用軟管 |
psi | |||
6X1 M-NPT A 1/8’ IP | 20000 | M6X1 | 2S-3-1040 |

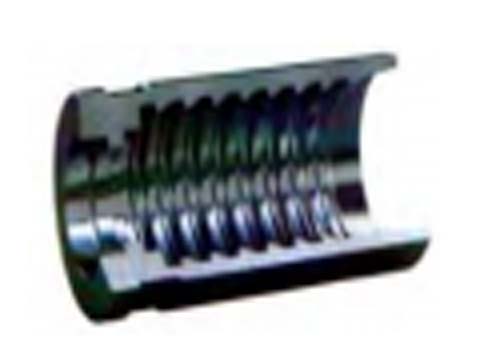

LT799A 6S
描述 | 軟管規格 | C | D | L | |
DN | inches | mm | mm | mm | |
1/2 LT799A 6S | 12 | 1/2 | 33.7 | 25.0 | 62.0 |
3/4 LT799A 6S | 20 | 3/4 | 45.0 | 34.0 | 71.5 |
油氣及海洋
應用于化學品壓注、海底液壓元件控制、海底井控等,可供超長管線。
水射流
應用于壓力達4000bar(58000 psi)的使用環境,如超高壓水刀射流破拆(鋼筋混凝土拆除等)、管線切割、紙張或鋼鐵切割以及需要超高壓的工業清洗,如貯罐和容器清洗、表面處理、建筑物表面清洗、除漆等。
螺栓預緊
應用于陸地及海上螺栓預緊系統及液壓扭矩扳手等。
壓力試驗設備
應用于閥、工具.控制面板、維修設備等的控制。
換熱器
應用于小口徑換熱器管的清洗等。
利通科技超高壓樹脂軟管采用國際通用的顏色標識對壓力等級做出區分,便于用戶辨識,降低安全風險
10000psi - 690bar
15,000psi-1034bar
20,000psi-1379bar
30,000psi-2068bar
40,000psi-2758bar
55,000psi-3792bar
軟管總成由超高壓樹脂軟管、連接件和配套附件裝配而成,由于其多在超高壓的環境下使用,裝配的專業度對超高壓樹脂軟管總成的安全性及使用性能起著決定性作用。
利通科技將用戶的使用體驗視為生命,從軟管、連接件、配件到半成品、總成成品檢驗,每一根合格出廠的超高壓樹脂軟管總成都經歷了層層把關。利通科技對精益生產的實施及精益理念的貫徹也絕不容許有不良品流入市場。
與利通科技其他軟管產品的選型一樣,您可以從以下幾個方面選擇合適的產品型號:
工作壓力 : 由產品的使用工況所決定的最大工作壓力、脈沖、以及要求的安全系數等;
使用溫度 : 包括介質最高/最低使用溫度及環境最高/最低溫度等;
使用介質 : 介質的物理及化學性能等將對軟管材質的選擇產生決定性的影響;
應用環境的特殊要求 : 某些特定的使用環境會對產品的耐磨度、耐老化性能、耐曲撓性能、耐脈沖性能、彎曲半徑等提出特殊要求(請咨詢我們的業務人員提供最佳解決方案);
連接件選型 : 選擇合適的連接件是生產合格總成產品的前提,根據設備的設計需求對連接件進行有效選擇(或設計)將極大的提高總成產品的生產效率。
保護套
透明PVC保護套或者惡劣環境所需的帶有纏繞鋼絲加強的超強保護套。注意:軟管保護套不能作為操作人員的保護設施使用。
不銹鋼抓環
抓環的扣壓有設定距離要求。在使用利通科技熱塑管進行換熱器清洗時,抓環可以為操作人員提供幫助。
軟管防脫扣
防脫扣在軟管意外脫接時將高壓管牢牢拴住,防止操作人員或設備受到傷害。強烈建議在高壓應用環境中配置。拉伸強度范圍1372KN到2477KN。
限彎節
限彎節可有效的預防惡劣操作條件下軟管和接頭連接處因扭曲產生泄露、破裂等問題。
利通科技先后通過的產品認證包括安標(MA)、MSHA、美國石油協會API產品認證API-16C和API-7K、美國船級社ABS產品認證(石油鉆采裝備及鋼絲編織橡膠軟管總成)及型式認可(石油鉆采裝備)、挪威船級社DNV型式認可(LTSA699)、俄羅斯GOST石油認證、勞氏防火認證等,已通過的管理體系認證包括DNV質量管理體系(符合標準GB/T19001-2016/ISO 9001:2015)、石油天然氣行業制造類組織的質量管理體系(符合標準API SpecificationQ1)、環境管理體系(符合標準GB/T24001-2016/ISO14001:2015)、武器裝備質量管理體系(符合標準GJB9001C-2017)和兩化融合管理體系(GB/T 23001-2017)等。利通科技檢測中心自2016年起獲CNAS認可,設有脈沖實驗室、爆破實驗室、耐火實驗室、鹽霧實驗室等近二十個實驗室,檢測結果被認定具有客觀性、準確性及權威性。
