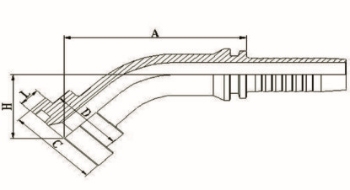

| 代 號 | 法蘭型號 | 軟 管 | 尺 寸 | |||||
| 公稱內(nèi)徑 | 標 號 | A | C | D | H | L | ||
| 87342-08-08 | 1/2” | 12 | 08 | 56.5 | 30.2 | 24 | 23.5 | 6.73 |
| 87342-12-08 | 3/4” | 12 | 08 | 58.9 | 38.1 | 31.7 | 24 | 6.73 |
| 87342-12-10 | 3/4” | 16 | 10 | 69.9 | 38.1 | 31.7 | 25.3 | 6.73 |
| 87342-12-12 | 3/4” | 20 | 12 | 73.5 | 38.1 | 31.7 | 29.5 | 6.73 |
| 87342-16-12 | 1” | 20 | 12 | 76.3 | 44.4 | 38 | 28.9 | 8 |
| 87342-16-16 | 1” | 25 | 16 | 83 | 44.4 | 38 | 31 | 8 |
| 87342-16-20 | 1” | 32 | 20 | 94.5 | 44.4 | 38 | 33.8 | 8 |
| 87342-20-16 | 1.1/4” | 25 | 16 | 82 | 50.8 | 43 | 30.5 | 8 |
| 87342-20-20 | 1.1/4” | 32 | 20 | 95 | 50.8 | 43 | 36 | 8 |
| 87342-24-20 | 1.1/2” | 32 | 20 | 95.9 | 60.3 | 50 | 35.2 | 8 |
| 87342-24-24 | 1.1/2” | 40 | 24 | 108 | 60.3 | 50 | 42 | 8 |
| 87342-32-24 | 2” | 40 | 24 | 109.9 | 71.4 | 62 | 39.1 | 9.53 |
| 87342-32-32 | 2” | 50 | 32 | 129.3 | 71.4 | 62 | 43 | 9.53 |
| 注：1.上訴代號用于編制軟管。 2.如需用于纏繞軟管代碼號改為87342-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES 2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 87342-XX-XX. | ||||||||
注：實際參數(shù)以最新圖冊為準
