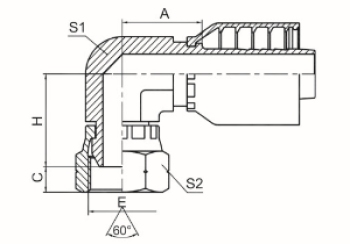

| 代 號 PART NO. | 螺紋E | 膠 管 HOSE BORE | 尺寸 DIMENSIONS | ||||||
| 編織 BRAIDED | 纏繞 SPIRAL | THREADE | 公稱內徑 DN | 標號DASH | A | C | H | S1 | S2 |
| 22691K-04-04RW | -- | G1/4”X19 | 6 | 04 | 19 | 5.5 | 18.5 | 11 | 19 |
| 22691K-06-04RW | -- | G3/8”X19 | 6 | 04 | 21.5 | 6.3 | 23 | 16 | 22 |
| 22691K-06-05RW | -- | G3/8”X19 | 8 | 05 | 21.5 | 6.3 | 23 | 16 | 22 |
| 22691K-06-06RW | -- | G3/8”X19 | 10 | 06 | 21 | 6.3 | 24 | 16 | 22 |
| 22691K-08-06RW | -- | G1/2”X14 | 10 | 06 | 24 | 7.5 | 26.5 | 19 | 27 |
| 22691K-08-08RW | 22692K-08-08RW | G1/2”X14 | 12 | 08 | 24 | 7.5 | 28.5 | 19 | 27 |
| 22691K-10-10RW | 22692K-10-10RW | G5/8”X14 | 16 | 10 | 26.5 | 9.5 | 29.2 | 22 | 30 |
| 22691K-12-12RW | 22692K-12-12RW | G3/4”X14 | 20 | 12 | 27.5 | 10.9 | 33 | 27 | 32 |
| 22691K-16-16RW | 22692K-16-16RW | G1”X11 | 25 | 16 | 34.7 | 11.7 | 38.1 | 33 | 41 |
