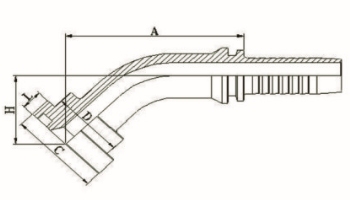

| 代 號 | 法蘭型號 | 軟 管 | 尺 寸 | |||||
| 公稱內(nèi)徑 | 標(biāo) 號 | A | C | D | H | L | ||
| 87642-08-08 | 1/2” | 12 | 08 | 57.5 | 31.7 | 24 | 25 | 7.75 |
| 87642-08-12 | 1/2” | 20 | 12 | 77 | 31.7 | 24 | 29.6 | 7.75 |
| 87642-12-10 | 3/4” | 16 | 10 | 72.5 | 41.3 | 32 | 28.2 | 8.76 |
| 87642-12-12 | 3/4” | 20 | 12 | 75.5 | 41.3 | 32 | 32 | 8.76 |
| 87642-16-16 | 1” | 25 | 16 | 86 | 47.6 | 38 | 34 | 9.53 |
| 87642-20-20 | 1.1/4” | 32 | 20 | 100 | 54 | 44 | 40 | 10.29 |
| 87642-24-20 | 1.1/2” | 32 | 20 | 105.8 | 63.5 | 51 | 45.1 | 12.57 |
| 87642-24-24 | 1.1/2” | 40 | 24 | 112 | 63.5 | 51 | 46 | 12.57 |
| 87642-32-24 | 2” | 40 | 24 | 125.4 | 79.4 | 67 | 54.7 | 12.57 |
| 87642-32-32 | 2” | 50 | 32 | 143 | 79.4 | 67 | 49 | 12.57 |
| 注：1.上訴代號用于編制軟管。 2.如需用于纏繞軟管代碼號改為87642-xx-xx。 NOTE : 1.FOR USE WITH BRAIDED HOSES 2.IF USE WITH SPIRAL HOSES ,HOSE FITTINGS SERIES NUMBER IS 87642-XX-XX. | ||||||||
注：實際參數(shù)以最新圖冊為準(zhǔn)
