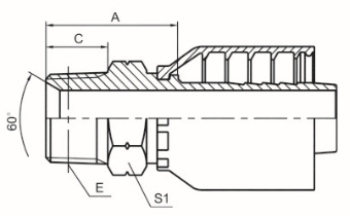

| 代 號 PART NO. | 螺紋E | 膠 管 HOSE BORE | 尺寸 DIMENSIONS | ||||
| 編織 BRAIDED | 纏繞 SPIRAL | THREADE | 公稱內徑 DN | 標號DASH | A | C | S1 |
| 13011-02-04SPRW | -- | R1/8”X28 | 6 | 04 | 22 | 10 | 12 |
| 13011-04-04SPRW | -- | R1/4”X28 | 6 | 04 | 26.5 | 14.5 | 14 |
| 13011-04-05SPRW | -- | R1/4”X28 | 8 | 05 | 27.4 | 15.4 | 14 |
| 13011-04-06SPRW | -- | R1/4”X28 | 10 | 06 | 26 | 14.5 | 17 |
| 13011-06-04SPRW | -- | R3/8”X19 | 6 | 04 | 27 | 15 | 17 |
| 13011-06-05SPRW | -- | R3/8”X19 | 8 | 05 | 27 | 15 | 17 |
| 13011-06-06SPRW | -- | R3/8”X19 | 10 | 06 | 26.5 | 15 | 17 |
| 13011-06-08SPRW | 13012-06-08SPRW | R3/8”X19 | 12 | 08 | 27.5 | 15 | 19 |
| 13011-08-06SPRW | -- | R1/2”X14 | 10 | 06 | 33.5 | 20 | 22 |
| 13011-08-08SPRW | 13012-08-08SPRW | R1/2”X14 | 12 | 08 | 34.5 | 20 | 22 |
| 13011-08-10SPRW | 13012-08-10SPRW | R1/2”X14 | 10 | 06 | 33.5 | 20 | 22 |
| 13011-08-12SPRW | 13012-08-12SPRW | R1/2”X14 | 20 | 12 | 36 | 20 | 27 |
| 13011-12-08SPRW | 13012-12-08SPRW | R3/4”X14 | 12 | 08 | 36.5 | 20 | 27 |
| 13011-12-10SPRW | 13012-12-10SPRW | R3/4”X14 | 16 | 10 | 37 | 20 | 27 |
| 13011-12-12SPRW | 13012-12-12SPRW | R3/4”X14 | 20 | 12 | 36 | 20 | 27 |
| 13011-12-16SPRW | 13012-12-16SPRW | R3/4”X14 | 25 | 16 | 40.2 | 20 | 32 |
| 13011-16-12SPRW | 13012-16-12SPRW | R1”X11 | 20 | 12 | 42.5 | 25.5 | 36 |
| 13011-16-16SPRW | 13012-16-16SPRW | R1”X11 | 25 | 16 | 45.7 | 25.5 | 36 |
| 13011-20-20SPRW | 13012-20-20SPRW | R1.1/4”X11 | 32 | 20 | 48.7 | 26.5 | 46 |
| 13011-24-24SPRW | 13012-24-24SPRW | R1.1/2”X11 | 40 | 24 | 51.5 | 26.5 | 50 |
| 13011-32-24SPRW | 13012-32-24SPRW | R2”X11 | 40 | 24 | 57 | 30 | 65 |
| 13011-32-32SPRW | 13012-32-32SPRW | R2”X11 | 50 | 32 | 60.5 | 30 | 65 |
注：實際參數以最新圖冊為準
