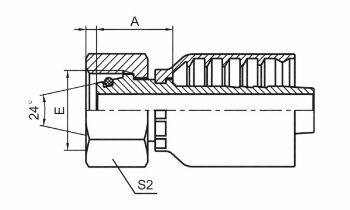

公制內螺紋24°錐帶O形圈輕系列 ISO 12151-2 DIN 3865

產品標簽

代號 PART NO.		螺紋E	膠管 HOSE BORE		管子外徑	O形圈	尺寸 DIMENSIONS
編織 BRAIDED	纏繞 SPIRAL	THREADE	公稱內徑 DN	標號DASH	TUBE O.D.	O RING	A	C	S1
20411-12-04WRW	--	M12X1.5	6	04	6	O04.5X1.5	23.6	1.4	17
20411-14-04TRW	--	M14X1.5	6	04	8	O06.5X1.5	19.1	1.4	17
20411-14-05WRW	--	M14X1.5	10	06	8	O06.5X1.5	23.7	1.4	17
20411-16-04TRW	--	M16X1.5	6	04	10	O08.0X1.5	19.7	2.1	19
20411-16-05TRW	--	M16X1.5	8	05	10	O08.0X1.5	19.7	2.1	19
20411-16-06WRW	--	M16X1.5	10	06	10	O08.0X1.5	24.5	2.1	19
20411-18-05TRW	--	M18X1.5	8	05	12	O10.0X1.5	21.5	1.5	22
20411-18-06TRW	--	M18X1.5	10	06	12	O10.0X1.5	21	1.5	22
20411-18-08WRW	20412-18-08WRW	M18X1.5	12	08	12	O10.0X1.5	26.2	1.8	22
20411-22-05TRW	--	M22X1.5	8	05	15	O12.0X2.0	22	3	27
20411-22-06TRW	--	M22X1.5	10	06	15	O12.0X2.0	21.5	3	27
20411-22-08TRW	20412-22-08TRW	M22X1.5	12	08	15	O12.0X2.0	22.5	3	27
20411-22-10WRW	20412-22-10WRW	M22X1.5	16	10	15	O12.0X2.0	27.1	3	27
20411-26-08TRW	20412-26-08TRW	M26X1.5	12	08	18	O15.0X2.0	23.4	2.1	32
20411-26-10TRW	20412-26-10TRW	M26X1.5	16	10	18	O15.0X2.0	23.9	2.1	32
20411-26-12WRW	20412-26-12WRW	M26X1.5	20	12	18	O15.0X2.0	27.4	2.1	32
20411-30-10TRW	20412-30-10TRW	M30X2	16	10	22	O20.0X2.0	26.7	3.8	36
20411-30-12TRW	20412-30-12TRW	M30X2	20	12	22	O20.0X2.0	25.7	3.8	36
20411-30-16WRW	20412-30-16WRW	M30X2	25	16	22	O20.0X2.0	32.5	3.8	36
20411-36-12TRW	20412-36-12TRW	M36X2	20	12	28	O26.0X2.0	25	4.5	41
20411-36-16TRW	20412-36-16TRW	M36X2	25	16	28	O26.0X2.0	28.2	4.5	41
20411-36-20WRW	20412-36-20WRW	M36X2	32	20	28	O26.0X2.0	33.3	4.5	41
20411-45-16TRW	20412-45-16TRW	M45X2	25	16	35	O32.0X2.5	31.2	4	50
20411-45-20TRW	20412-45-20TRW	M45X2	32	20	35	O32.0X2.5	31.2	4	50
20411-52-20TRW	20412-52-20TRW	M52X2	32	20	42	O38.0X2.5	32.2	4	60
20411-52-24TRW	20412-52-24TRW	M52X2	40	24	42	O38.0X2.5	33	4	60
