45°公制卡套式直管 DIN 2353

產品標簽

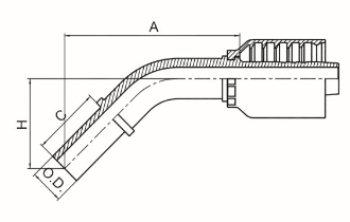

代號 PART NO.		膠管 HOSE BORE		管子外徑	尺寸 DIMENSIONS			備注
編織 BRAIDED	纏繞 SPIRAL	公稱內徑 DN	標號DASH	TUBE O.D.	A	C	H	NOTE
50041-06-04RW	--	6	04	6	53.7	22	30.1	輕系列
50041-08-05RW	--	8	05	8	57.2	24	32.4
50041-08-06RW	--	10	06	8	58.9	24	33.1
50041-10-05RW	--	8	05	10	55.5	23	30.6
50041-10-06RW	--	10	06	10	57.1	23	31.3
50041-12-06RW	--	10	06	12	59.5	23	34.5
50041-12-08RW	50042-12-08RW	12	008	12	72.9	23	37.4
50041-15-06RW	50042-15-06RW	10	06	15	60.3	25	34.5
50041-15-08RW	50042-15-08RW	12	08	15	71.1	25	35.7
50041-18-08RW	50042-18-08RW	12	08	18	73.9	26	38.5
50041-18-10RW	50042-18-10RW	16	10	18	86.1	26	39.8
50041-22-10RW	50042-22-10RW	16	10	22	88.6	28	42.3
50041-22-12RW	50042-22-12RW	20	12	22	93.3	28	45.9
50041-22-16RW	50042-22-16RW	25	16	22	103.1	28	46.7
50041-28-16RW	50042-28-16RW	25	16	28	105.9	30	49.5
50041-35-20RW	50042-35-20RW	32	20	35	119.7	36	57.8
50041-42-24RW	50042-42-24RW	40	24	42	112.3	40	59.6
50041-08-04RW	--	6	04	8	55.1	24	31.5	重系列
50041-08-05RW	--	8	05	8	57.2	24	32.4
50041-08-06RW	--	10	06	8	58.9	24	33.1
50041-10-04RW	--	6	04	10	55.5	26	31.9
50041-12-04RW	--	6	04	12	58.6	26	35.1
50041-12-05RW	--	8	05	12	60.7	26	35.9
50041-14-06RW	--	10	06	14	62.6	29	37.3
50041-14-08RW	50042-14-08RW	12	08	14	74.3	29	38.8
50041-14-12RW	50042-14-12RW	20	12	14	91.9	29	43.8
50041-16-08RW	50042-16-08RW	12	08	16	77.1	30	41.7
50041-16-10RW	50042-16-10RW	16	10	16	89.3	30	43
50041-20-10RW	50042-20-10RW	16	10	20	94.3	36	48
50041-20-12RW	50042-20-12RW	20	12	20	100.7	36	52.6
50041-25-12RW	50042-25-12RW	20	12	25	101.8	40	54.4
50041-25-16RW	50042-25-16RW	25	16	25	111.6	40	55.2
50041-30-16RW	50042-30-16RW	25	16	30	115.8	44	59.4
50041-30-20RW	50042-30-20RW	32	20	30	125.4	44	63.5
50041-38-16RW	50042-38-16RW	25	16	38	120.1	50	63.6
50041-38-20RW	50042-38-20RW	32	20	38	129.6	50	67.7
